JIRA Integration

Conceptboard brings JIRA directly to your boards turning ideas into action. Import JIRA tickets as tasks, manage status and assignees, and keep everything in sync.

Connect JIRA to your Conceptboard account

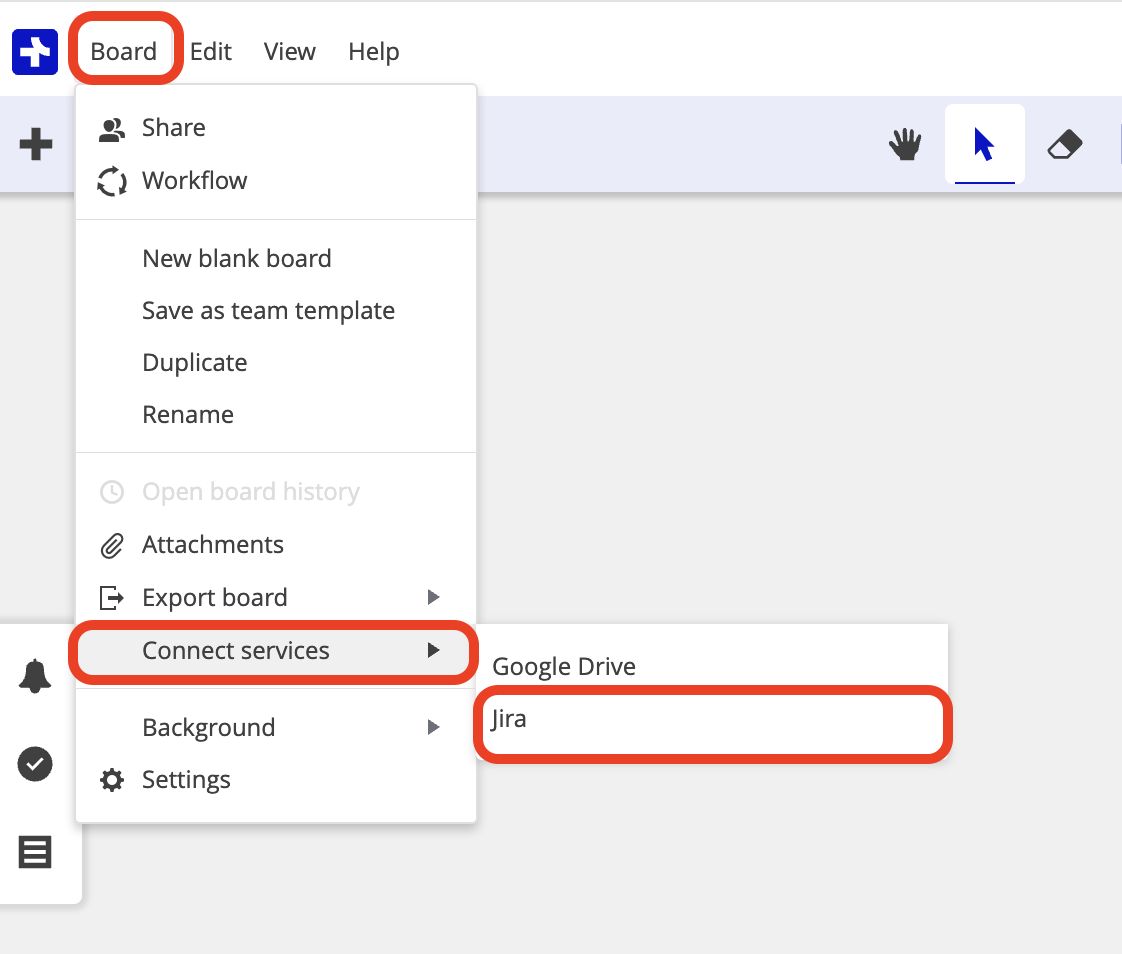

JIRA integration on boards:

1. Open Board menu
2. Select Connect services -> JIRA

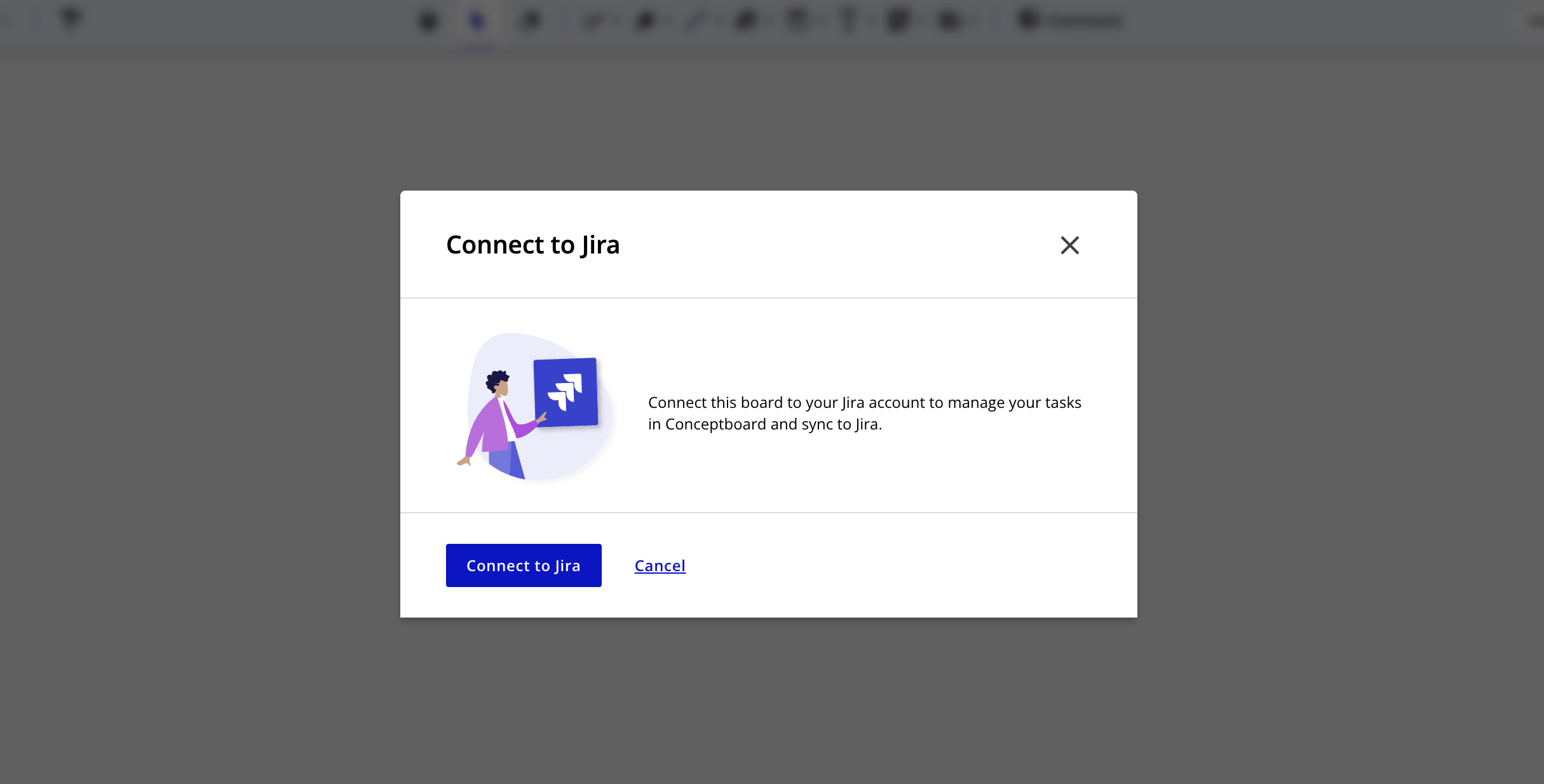

3. In the pop up window that appears, choose Connect to JIRA

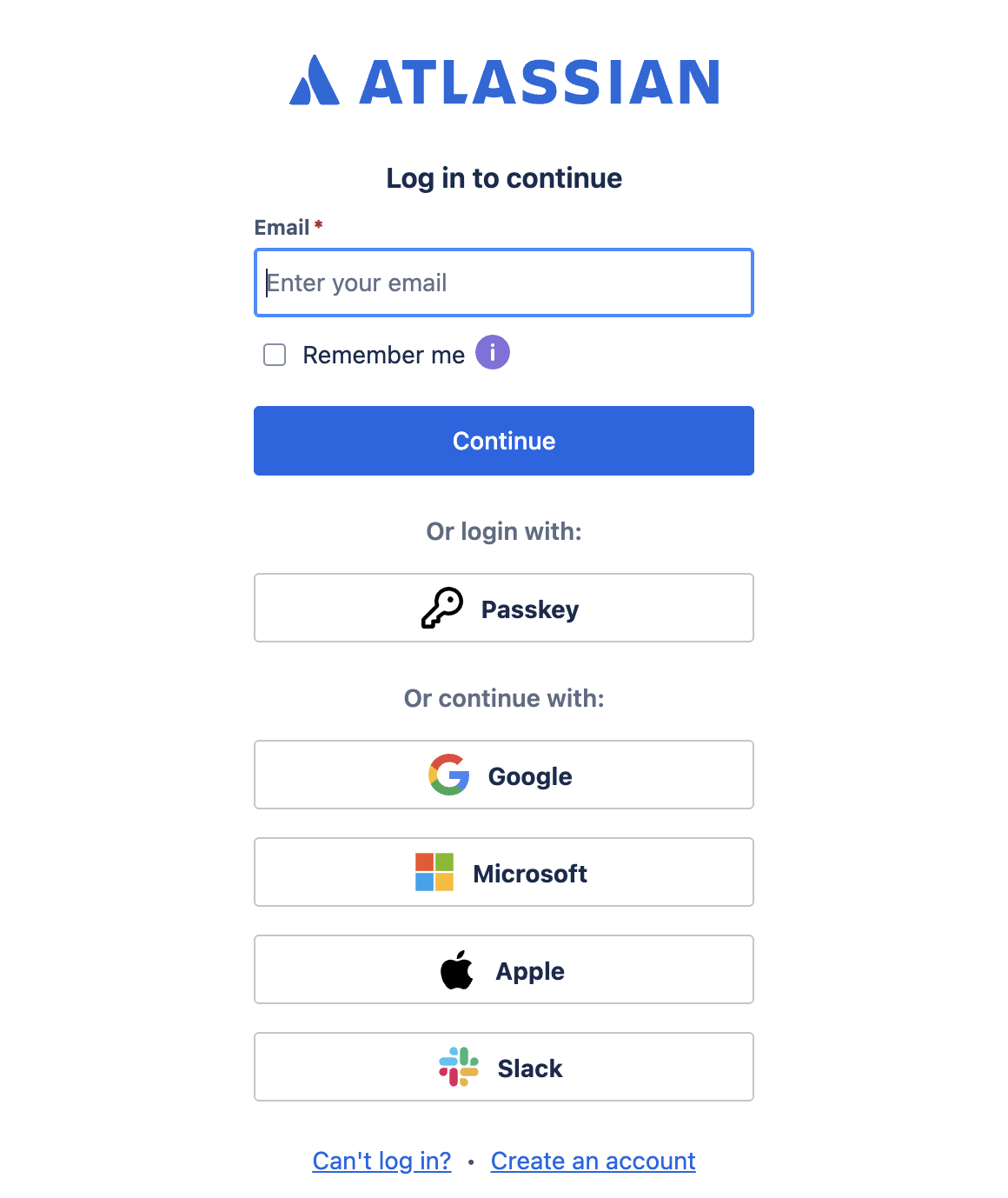

4. Log in into your JIRA account

5. Press Continue if the account shown is the correct account

   1. If that is not the correct account you can select Use another account to find the account you want to use.

   2. If you want to remove an account from the available options, select Remove account.

6. Login to your selected account

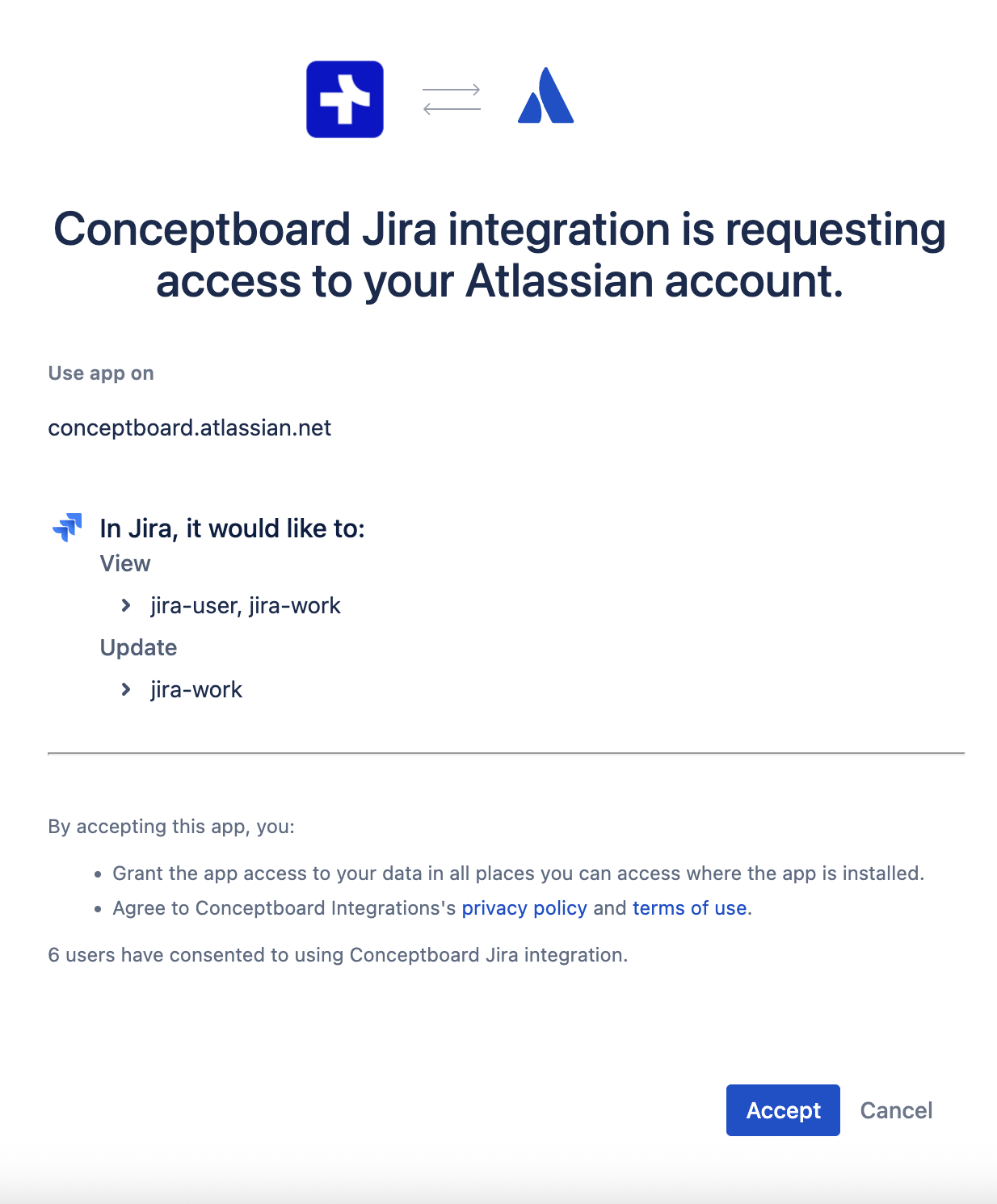

7. Select Accept, to allow access to your JIRA account
8. Your JIRA and Conceptboard are now connected

Add JIRA tickets to your board

You can access the search menu for JIRA in two ways.

1. Through the Connected services menu

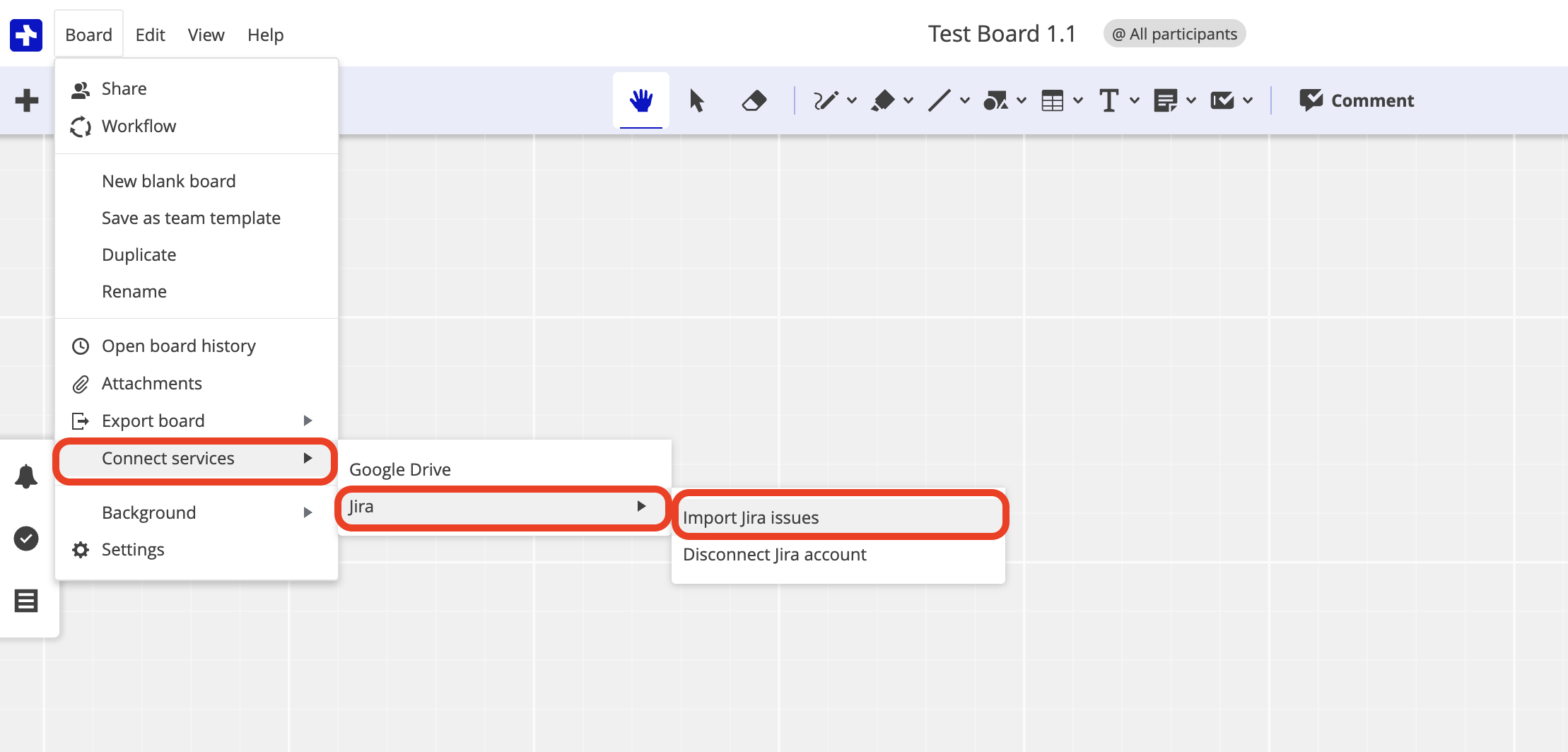

The search bar for JIRA tickets opens automatically after login. To add any further tickets, open "Connect services" and proceed to "Import JIRA issues"

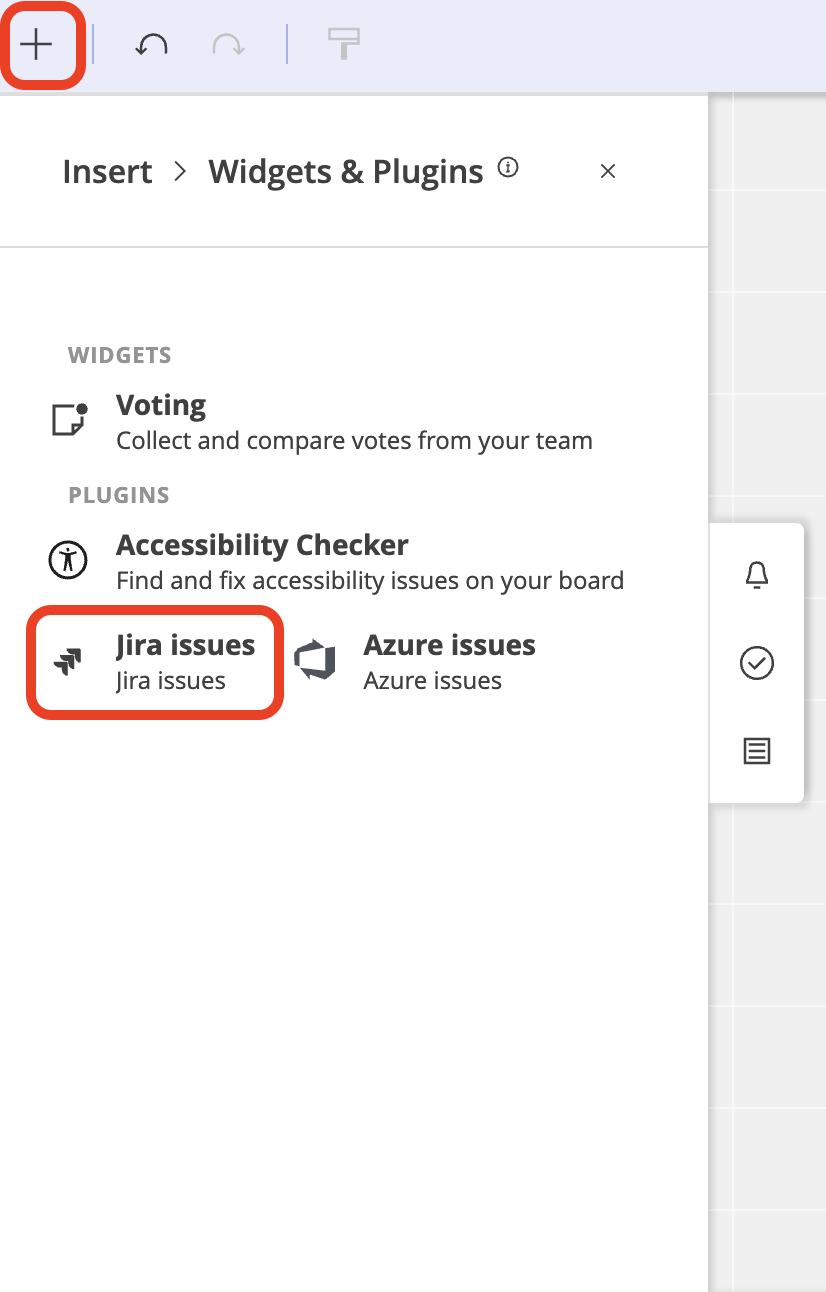

2. From the Insert -> Widget menu

• Select Insert Widget

• Then select JIRA Issues

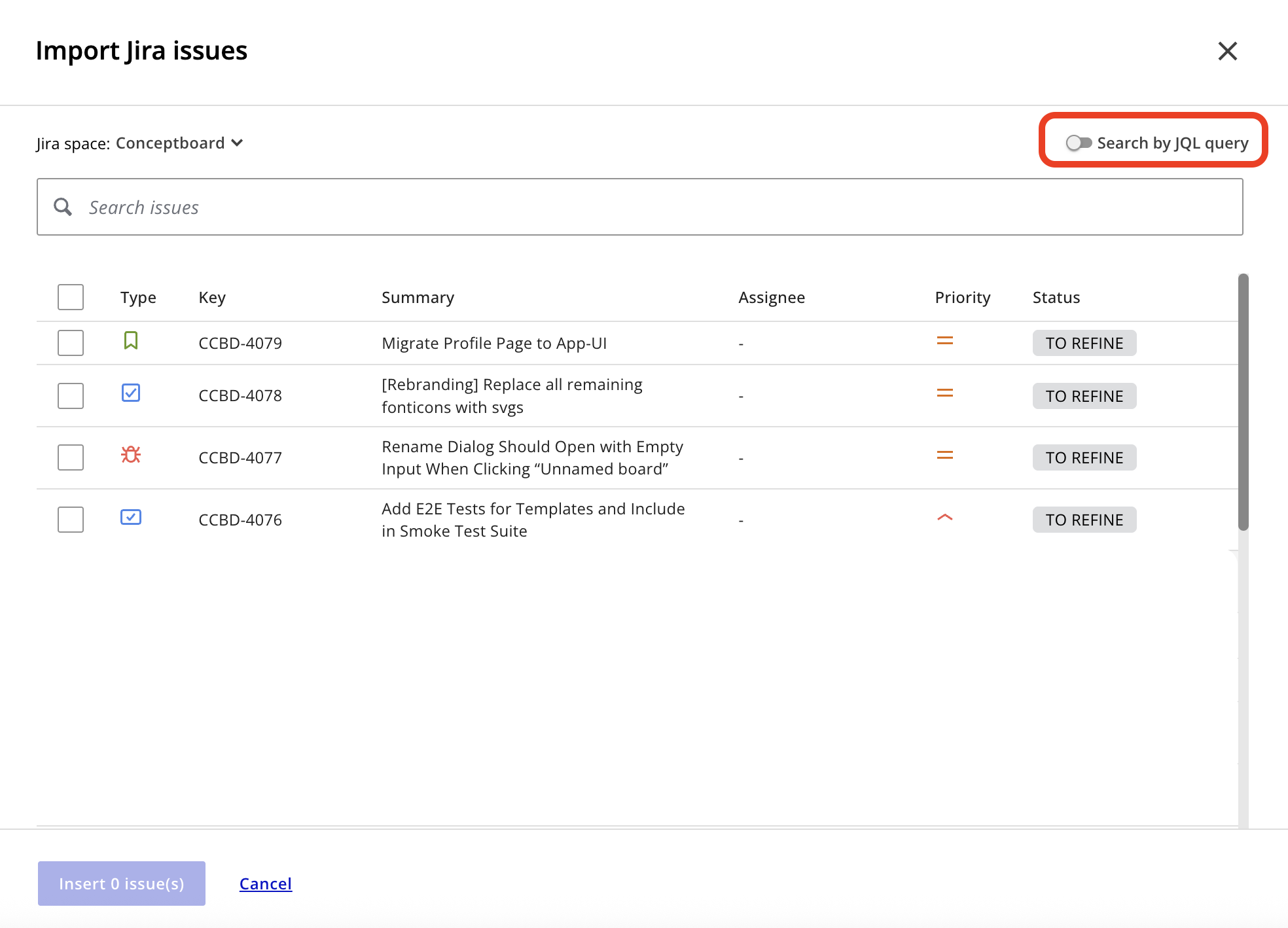

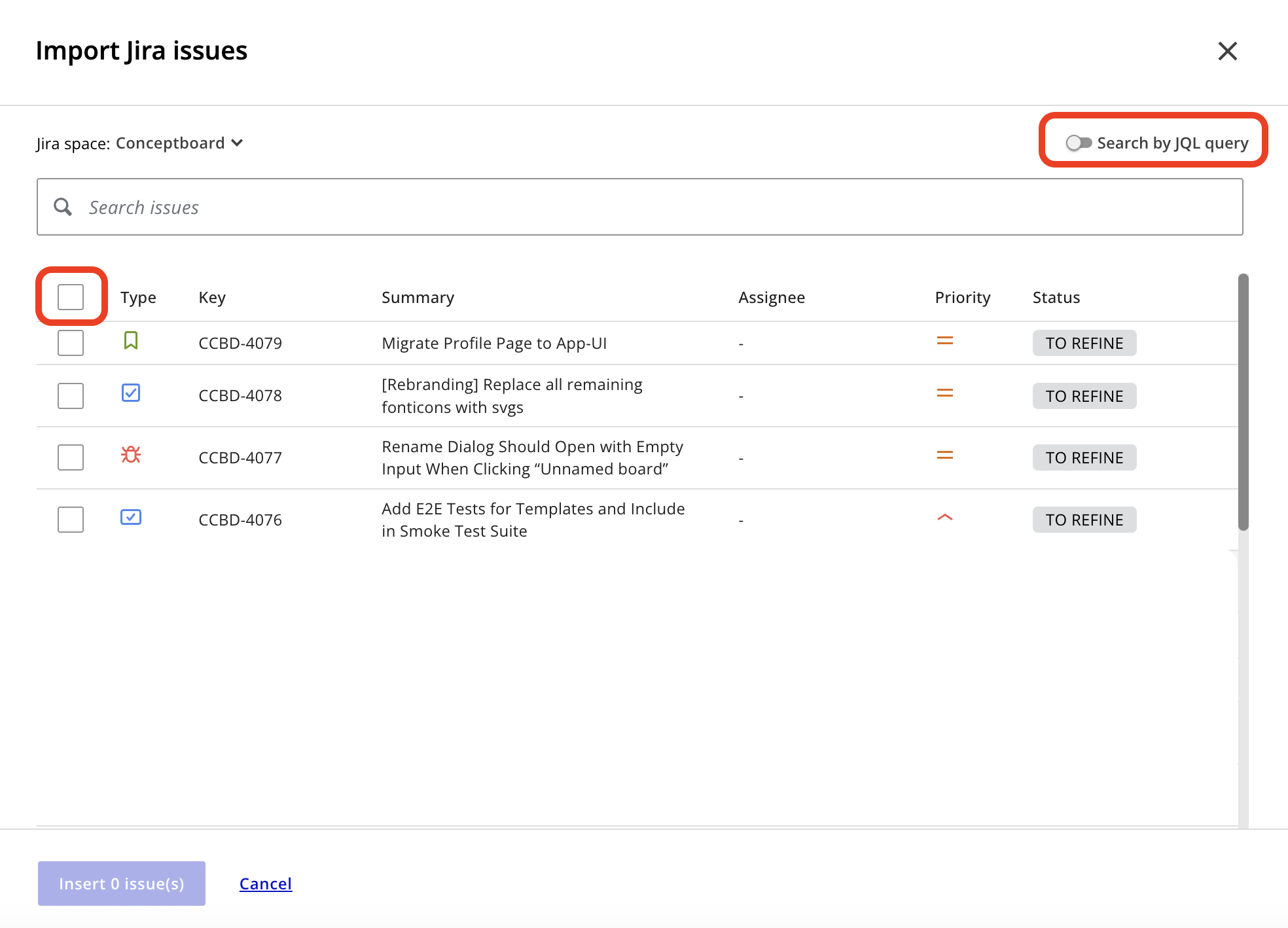

Once you have access to the search menu for JIRA tickets, you can:

• Select the JIRA space you want to see tickets from.

• Using the top search bar, choose the tickets you wish to integrate.

• Enable search by JQL query toggle at the top right of the menu if you want to use advanced search.

• Select one or more tickets by ticking the interactive checkbox on the left

  • Scroll down to load more tickets. The list loads 20 tickets per one till-the-bottom scroll.

  • To select all tickets currently loaded by scrolling, tick the checkbox in the top-left corner next to the [TYPE] field.

  • To insert all tickets from the search results, first scroll down until all of the tickets have been loaded. Then select all tickets by ticking the checkbox in the top-left corner next to the [TYPE] field.

• Select the Insert X issue(s) button.

• The search menu will close automatically

• The tickets are added as tasks

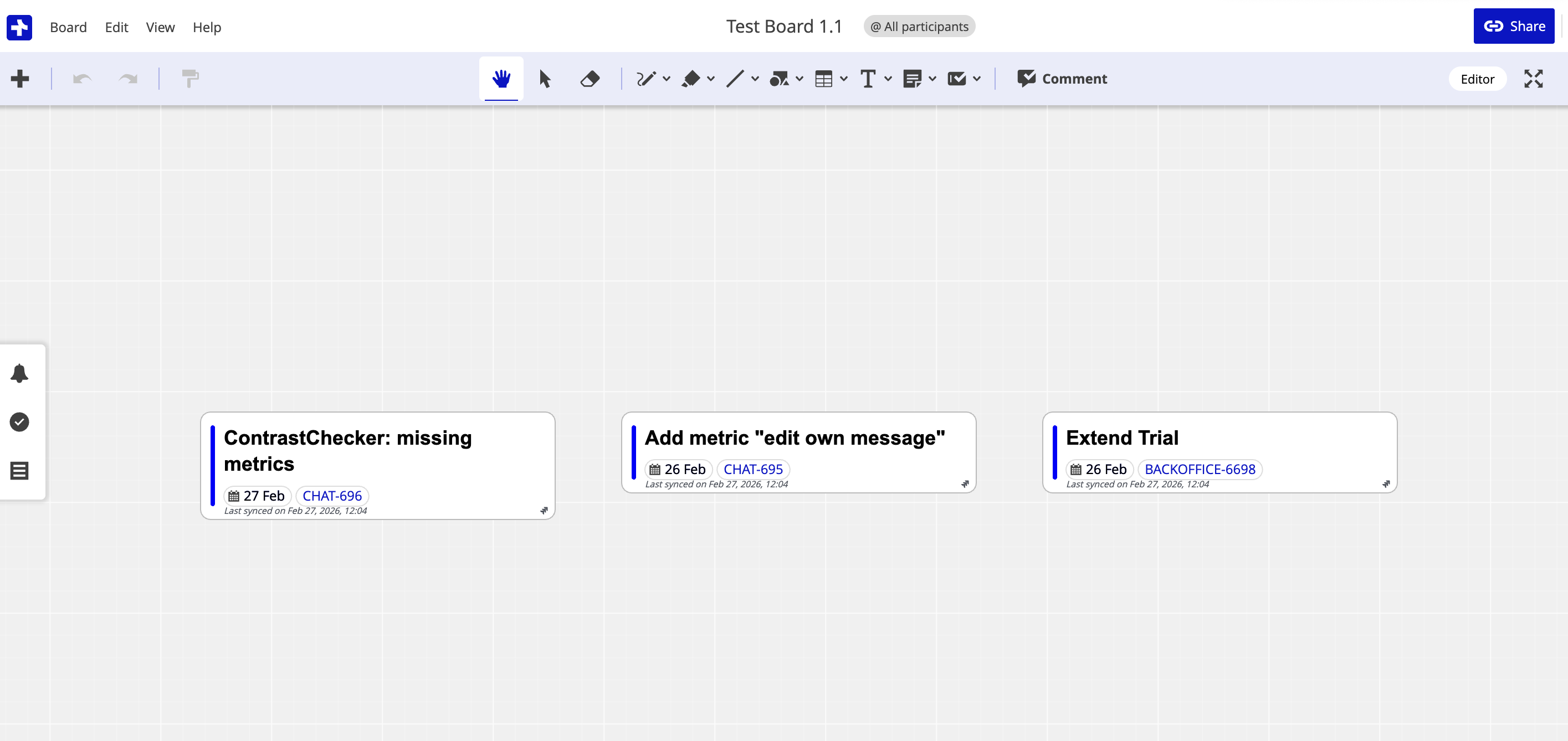

• JIRA tasks will appear one by one, positioned across the centre of your screen

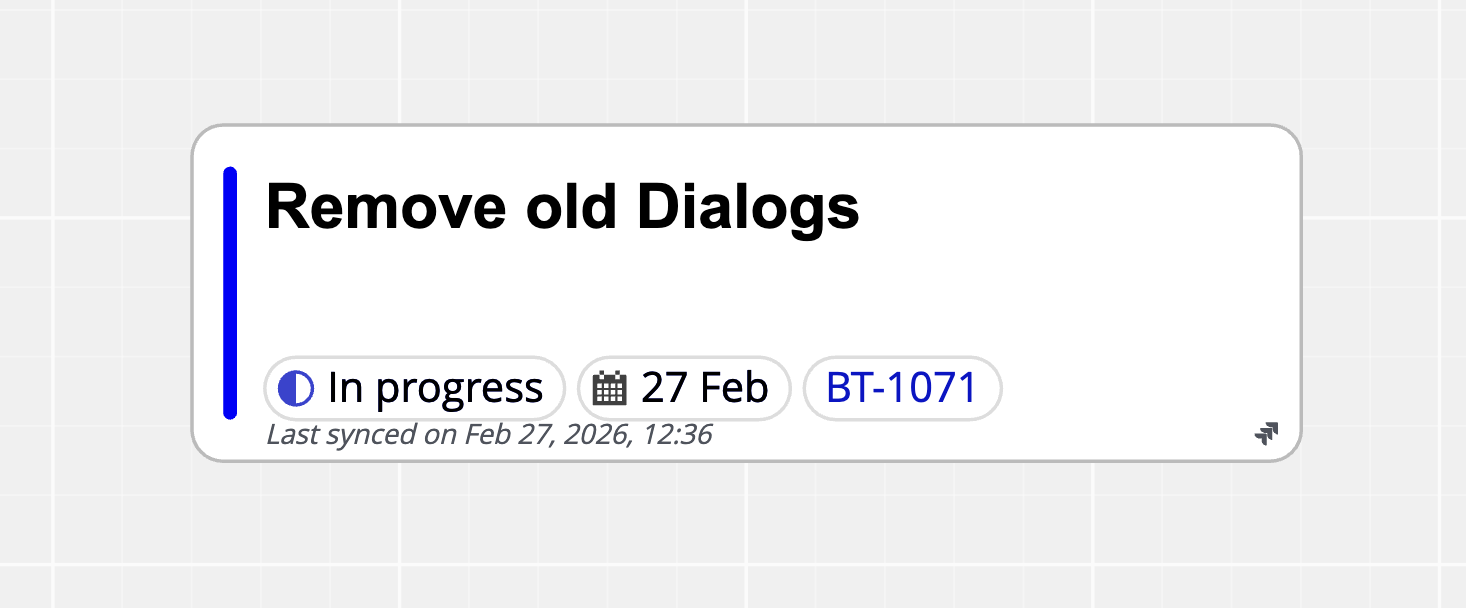

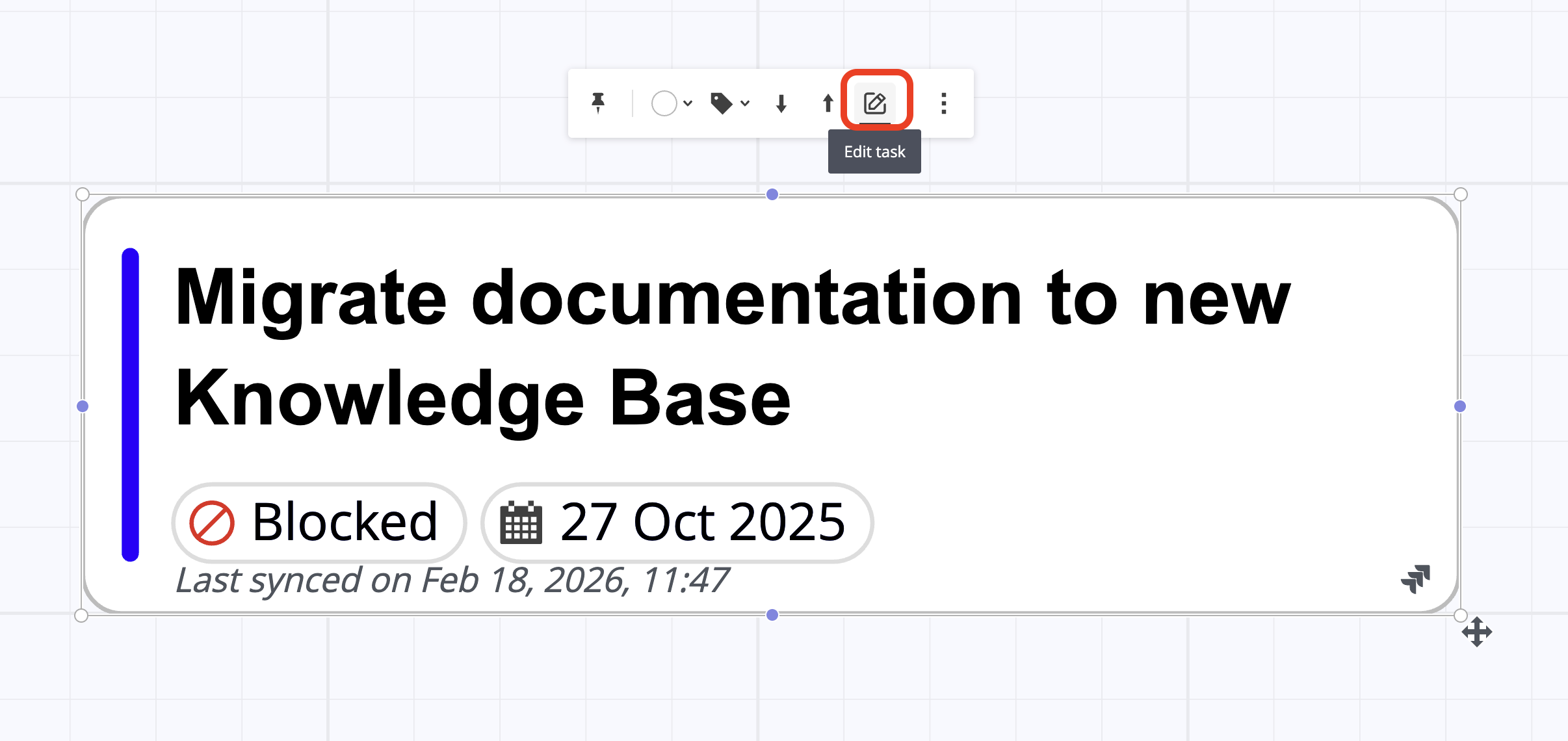

JIRA tickets as board tasks

JIRA task displays the following information:

• Issue summary
• Issue status
• Issue end date
• Issue key and link
• Last synced indicator
• JIRA icon
• Colour on task (This is not connected to any JIRA function. It is exclusive to Conceptboard)
• Custom Labels (This is not connected to any JIRA label function. It is exclusive to Conceptboard)

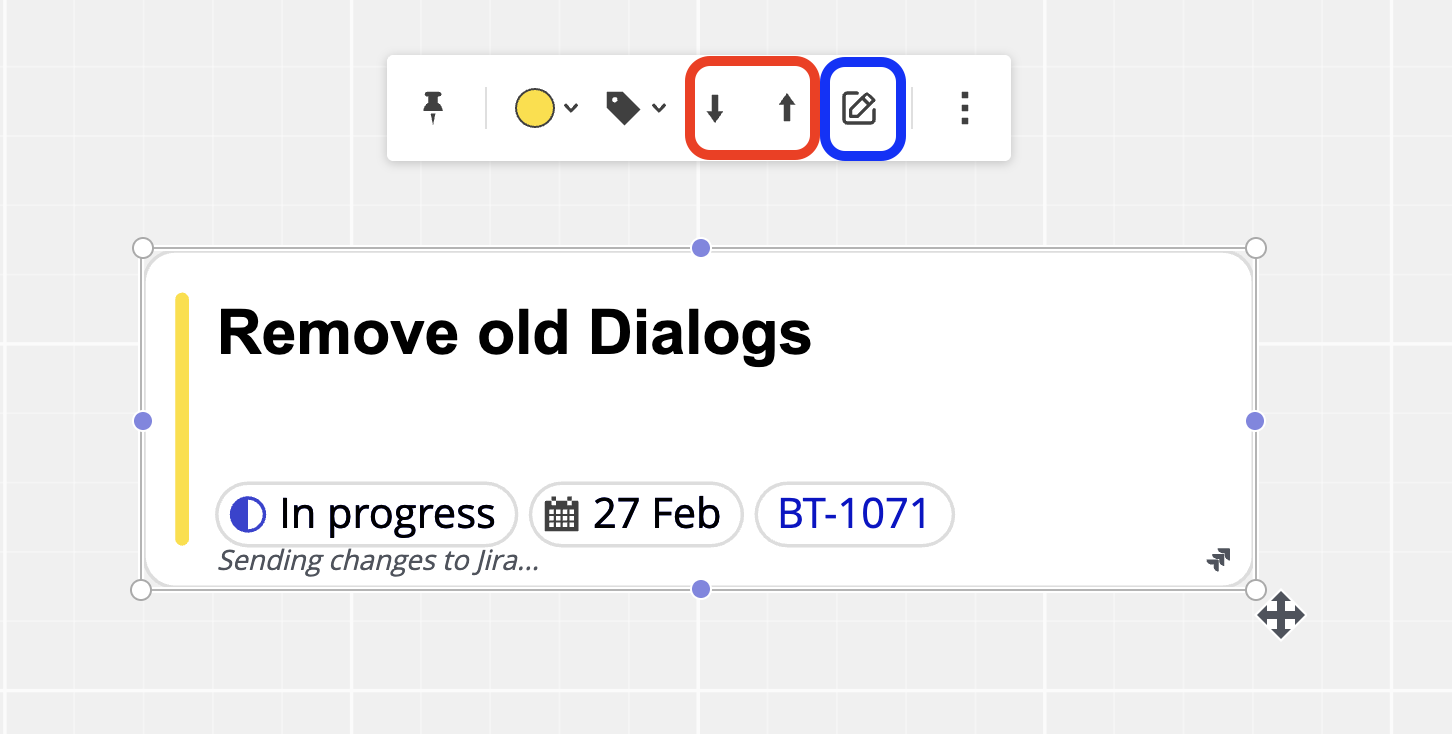

Task floating toolbar includes:

• Colour: Changes the task colour bar
• Label: Custom labels for the tasks on this board (Not connected to any JIRA label function, exclusive to Conceptboard)
• Sync from JIRA: Send all task values from the JIRA ticket to Conceptboard
• Sync to JIRA: Sends all task values from the Conceptboard task to JIRA
• Edit Task: Select "Task details", where you can edit more fields than what is visible on the task itself

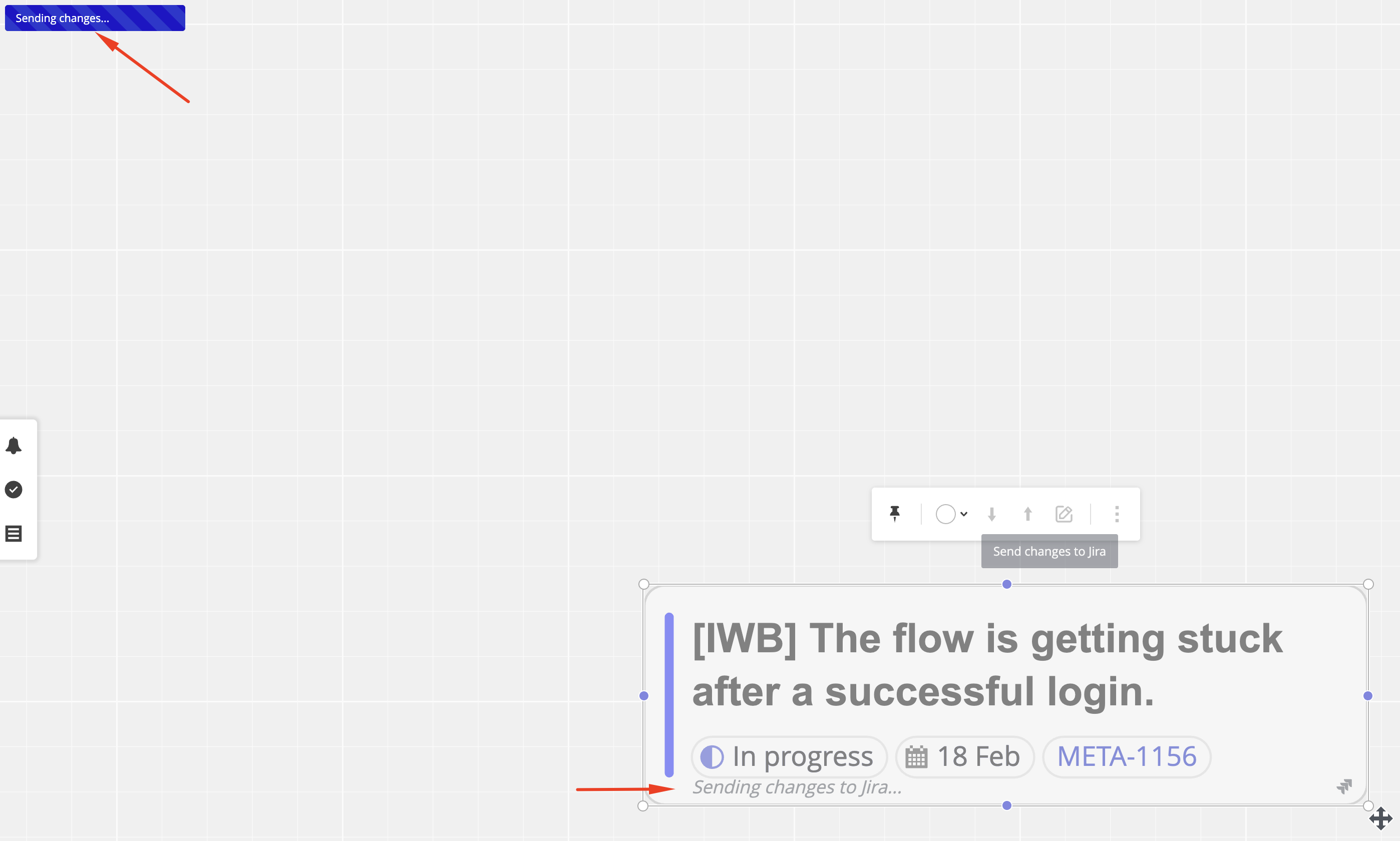

Task Synching

When a JIRA task is syncing, three indications we show you this status on the board:

• message at the top left corner of the board

• copy of that message at the bottom of the task

• the task is also disabled (greyed out) for all users in the board until that sync is done

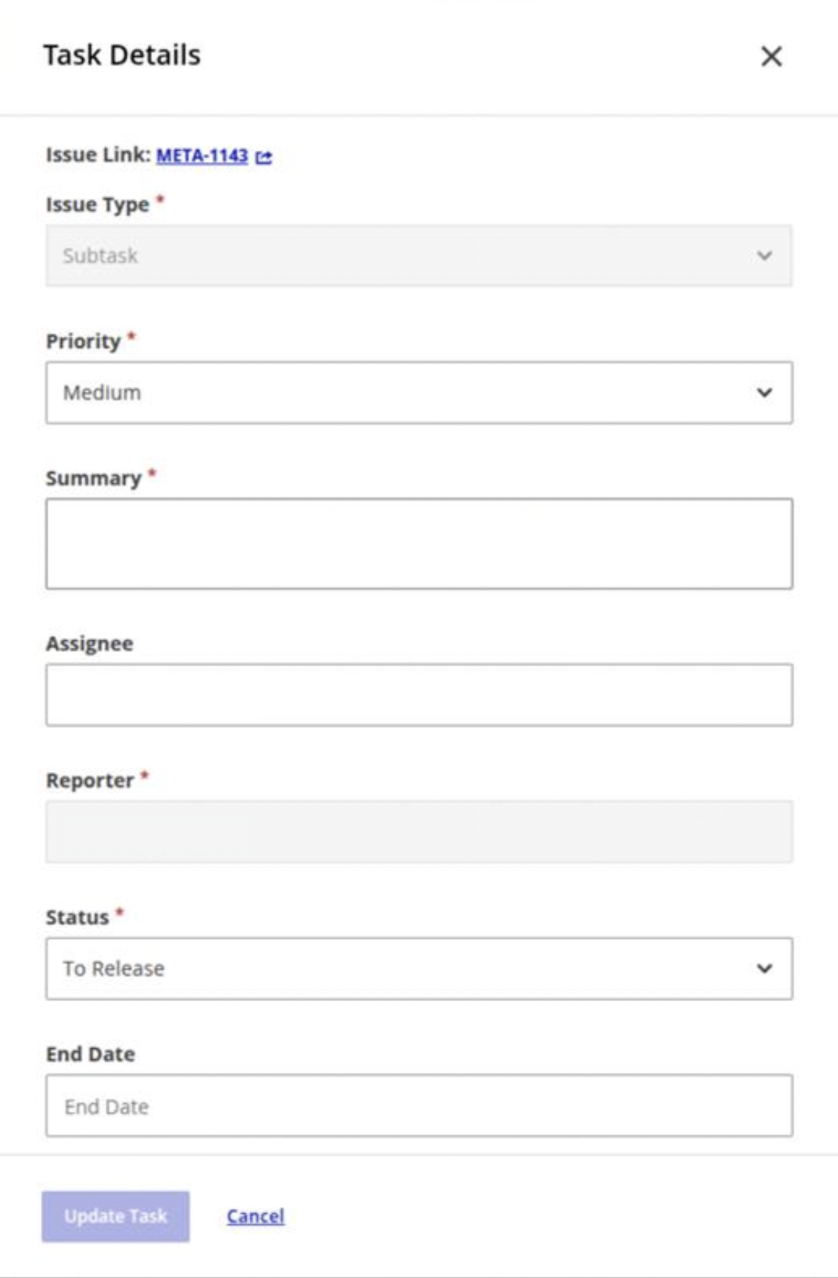

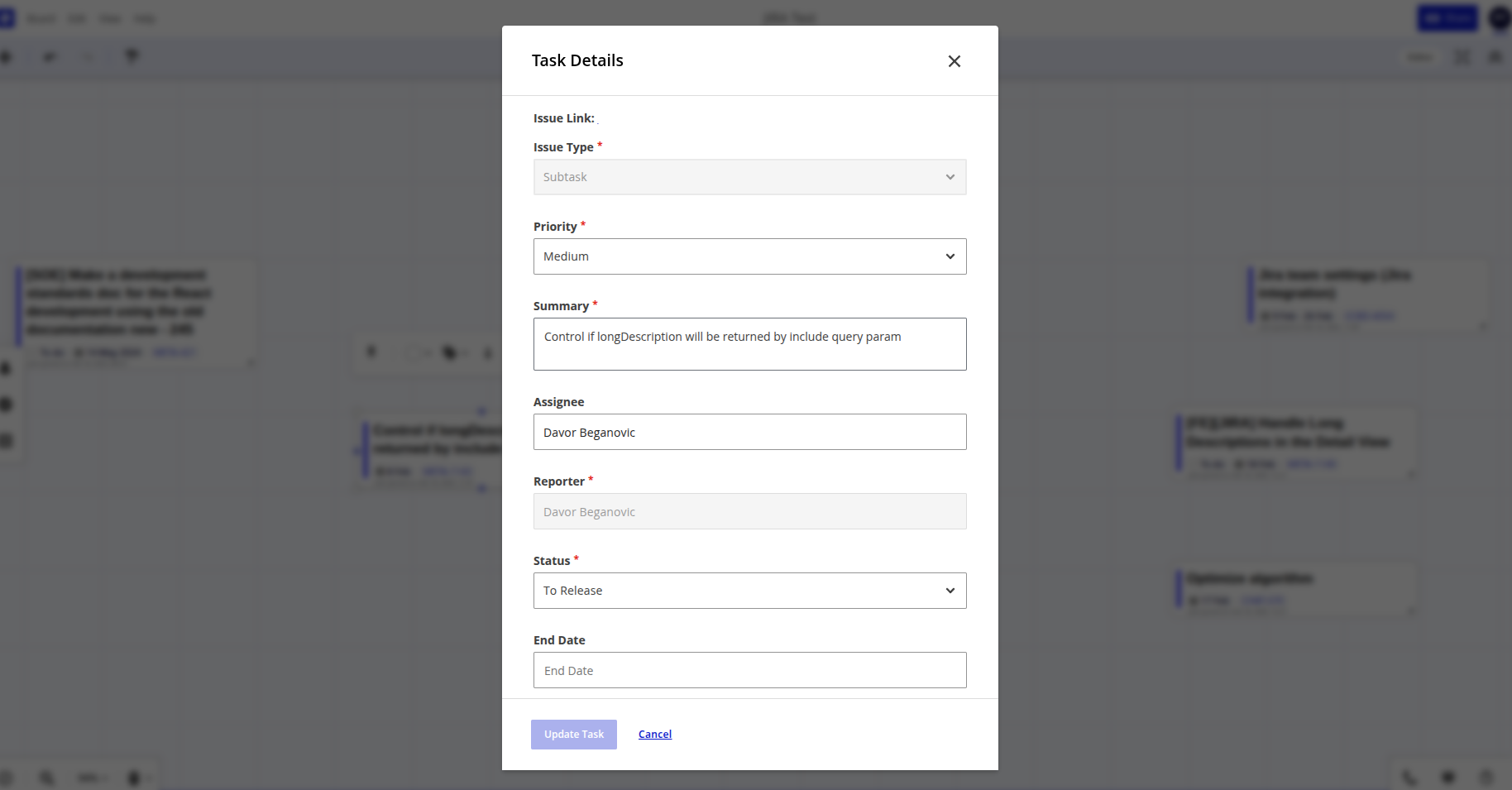

JIRA Edit task/ Task Details

You can access a detailed view of the JIRA task:

1. Select the task
2. Select the Edit task option on the floating toolbar
3. A pop-up will appear with the task’s details

The pop-up includes:

• Issue Link
• Issue Type
• Priority
• Summary
• Assignee
• Reporter
• Status
• End Date

To update the task in both Conceptboard and JIRA:

1. Select the Update Task button

2. Select Cancel to cancel all changes

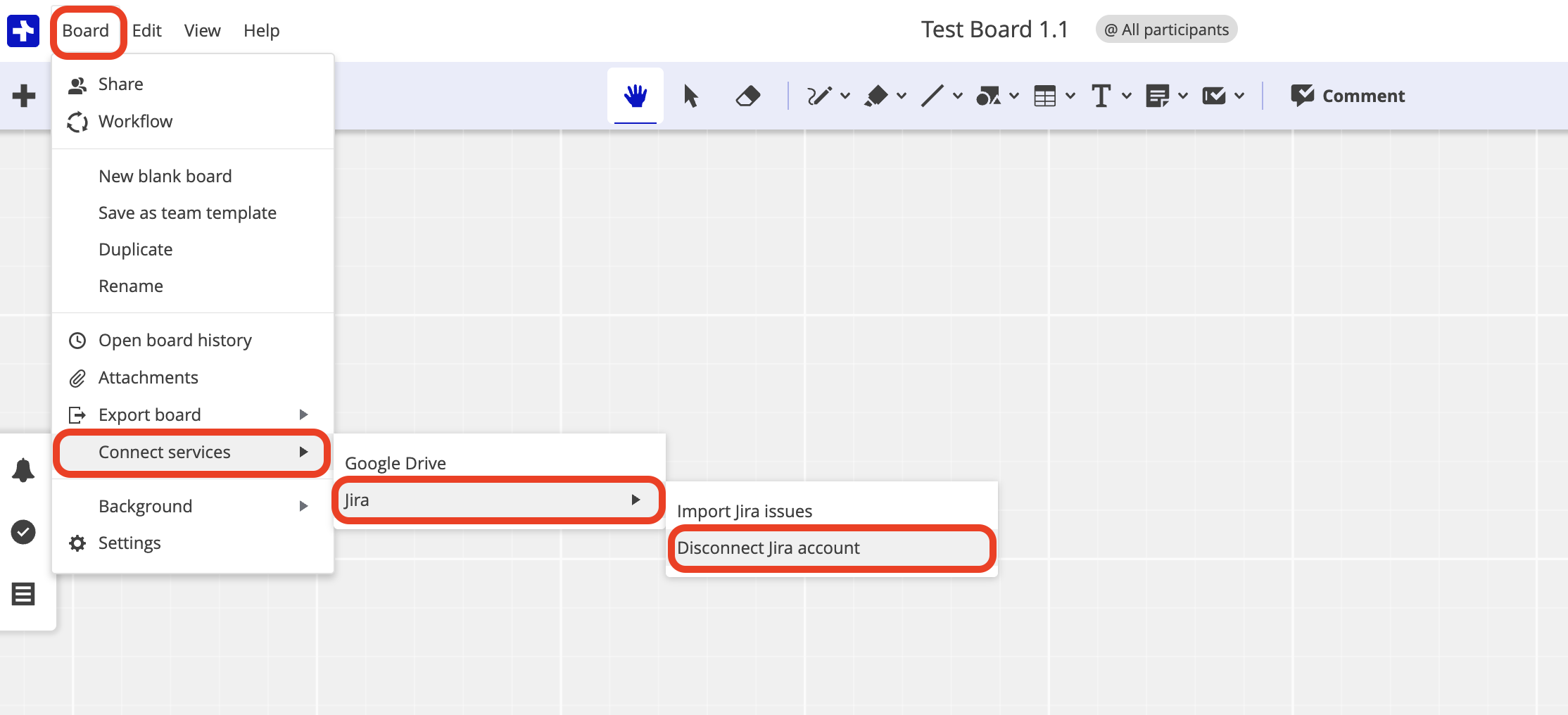

Disconnect JIRA account on boards

To disconnect your JIRA account from Conceptboard:

1. Open Board menu
2. Select Connect services
3. Select JIRA ->  Disconnect JIRA account (This option is only available if you already have a connected account)

If You Use an On-Prem Version of JIRA

Our JIRA integration is also available for on-prem solutions.

Please reach out to your Conceptboard account manager for further assistance with the setup. Our support team will require the following information from your side:

1. URL of JIRA API (base_url)

2. Exact version of your JIRA API (most frequently it is version 2)

3. Please specify which type of authentication you would prefer:

   1. PAT: Personal Access Token

   2. Basic Authentication

Search Behaviour in JIRA and JIRA On-Prem

The simple search behaves differently depending on your JIRA deployment:

• JIRA Cloud supports searching by issue key (for example, ABC-12) as well as other searchable fields

• JIRA On-Prem uses an older JIRA API for simple search. As a result, it only searches the issue summary and description, and does not support searching directly by issue key

Why am I seeing unexpected search results?

If you search for an issue key such as ABC-12, JIRA On-Prem may return other issues if that key appears in their summary or description (for example, as a reference to another issue).

For the most accurate results in JIRA On-Prem, we recommend using JQL (JIRA Query Language) whenever possible.

Troubleshooting

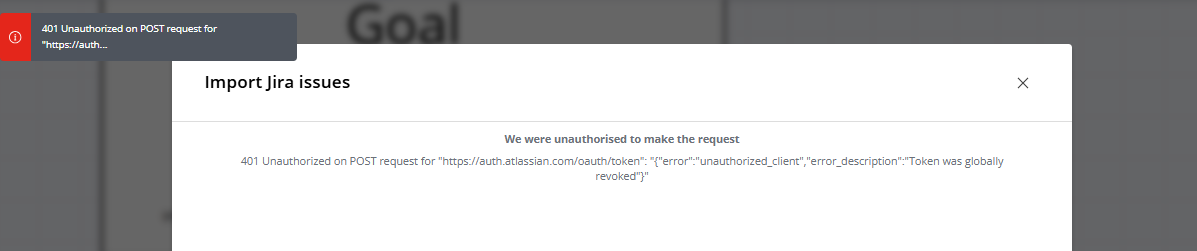

401 Error for unauthorized request

Description:

• Users cannot use JIRA integration

• When opening a window to search for JIRA issues, an error message appears on the top left of the board

• When trying to sync JIRA issues from or to JIRA, an error message appears at the top left of the board

Why does it happen?

JIRA API periodically disconnects

This is by design from the side of JIRA API. This behaviour is unrelated to the setup of Conceptboard’s integration

What should you do?

1. Disconnect your JIRA account from Conceptboard

2. Re-connect to your JIRA account again

3. It should work now properly
